# Photoshop-style checkboard background in MATLAB

## weblog/

Here's a gnarly one-liner to produce a checkerboard image `ch` with the same dimensions as you image `im` in matlab:

``````ch = repmat(1-0.2*xor((mod(repmat(0:size(im,2)-1,size(im,1),1),8*2)>7),(mod(repmat((0:size(im,1)-1)',1,size(im,2)),8*2)>7)),[1 1 3]);
``````

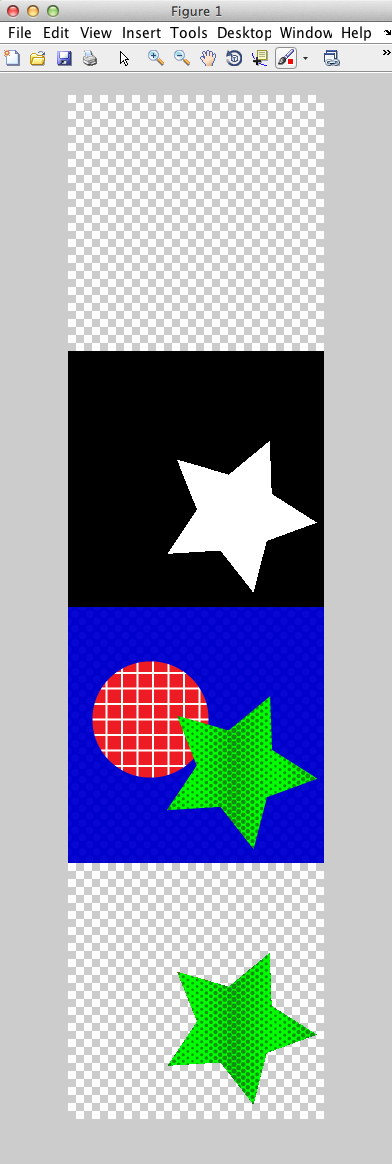

This is useful for alpha-compositing. So suppose you had an alpha-map `A` to extract the star from this colorful image `im`. Then you could composite the star over `ch`:

``````imshow([ ...
ch; ...
repmat(A,[1 1 3]); ...
im; ...
bsxfun(@times,ch,1-A)+bsxfun(@times,im,A)])
``````

Update: Here's an even gnarlier anonymous function which takes an image `im` and an alpha map `A` and produces an image of the composite over the checkboard:

checker = @(im,A) bsxfun(@times,1-A,repmat(1-0.2xor((mod(repmat(0:size(im,2)-1,size(im,1),1),82)>7),(mod(repmat((0:size(im,1)-1)',1,size(im,2)),8*2)>7)),[1 1 3])) + bsxfun(@times,A,im);

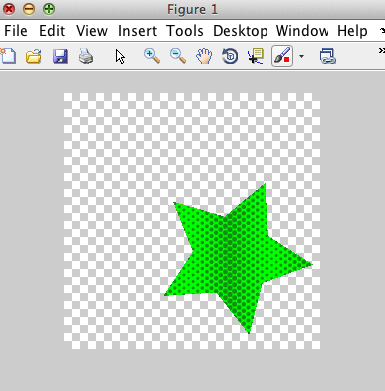

Then you can quickly display your checkboard background images with:

``````imshow(checker(im,A))
``````
