Tiny mesh viewer example using modern OpenGL core profile + Eigen + libigl + GLUT

Alec Jacobson

May 02, 2015

weblog/

I was pleased to find out that the glut built in on recent macs does indeed support modern opengl. You can enable it via the initialization with:

glutInitDisplayMode(GLUT_3_2_CORE_PROFILE|GLUT_RGBA|GLUT_DOUBLE|GLUT_DEPTH);

If you're using my patched glut you can also use the string version:

glutInitDisplayString("rgba depth double samples>=8 stencil core");

Together with libigl and Eigen (and made easy with C++11 features) you can write a little mesh viewer in modern opengl code in under 130 lines:

// make sure the modern opengl headers are included before any others
#include <OpenGL/gl3.h>
#define __gl_h_

#include <igl/frustum.h>
#include <igl/read_triangle_mesh.h>
#include <Eigen/Core>
#include <GLUT/glut.h>
#include <string>
#include <iostream>

std::string vertex_shader = R"(
#version 330 core
uniform mat4 proj;
uniform mat4 model;
in vec3 position;
void main()
{
  gl_Position = proj * model * vec4(position,1.);
}
)";
std::string fragment_shader = R"(
#version 330 core
out vec3 color;
void main()
{
  color = vec3(0.8,0.4,0.0);
}
)";

// width, height, shader id, vertex array object
int w=800,h=600;
GLuint prog_id=0;
GLuint VAO;
// Mesh data: RowMajor is important to directly use in OpenGL
Eigen::Matrix< float,Eigen::Dynamic,3,Eigen::RowMajor> V;
Eigen::Matrix<GLuint,Eigen::Dynamic,3,Eigen::RowMajor> F;
int main(int argc, char * argv[])
{
  // Init glut and create window + OpenGL context
  glutInit(&argc,argv);
  //glutInitDisplayString("rgba depth double samples>=8 stencil core");
  glutInitDisplayMode(GLUT_3_2_CORE_PROFILE|GLUT_RGBA|GLUT_DOUBLE|GLUT_DEPTH);
  glutInitWindowSize(w,h);
  glutCreateWindow("test");

  // Compile each shader
  const auto & compile_shader = [](const GLint type,const char * str) -> GLuint
  {
    GLuint id = glCreateShader(type);
    glShaderSource(id,1,&str,NULL);
    glCompileShader(id);
    return id;
  };
  GLuint vid = compile_shader(GL_VERTEX_SHADER,vertex_shader.c_str());
  GLuint fid = compile_shader(GL_FRAGMENT_SHADER,fragment_shader.c_str());
  // attach shaders and link
  prog_id = glCreateProgram();
  glAttachShader(prog_id,vid);
  glAttachShader(prog_id,fid);
  glLinkProgram(prog_id);
  GLint status;
  glGetProgramiv(prog_id, GL_LINK_STATUS, &status);
  glDeleteShader(vid);
  glDeleteShader(fid);

  // Read input mesh from file
  igl::read_triangle_mesh(argv[1],V,F);
  V.rowwise() -= V.colwise().mean();
  V /= (V.colwise().maxCoeff()-V.colwise().minCoeff()).maxCoeff();

  // Generate and attach buffers to vertex array
  glGenVertexArrays(1, &VAO);
  GLuint VBO, EBO;
  glGenBuffers(1, &VBO);
  glGenBuffers(1, &EBO);
  glBindVertexArray(VAO);
  glBindBuffer(GL_ARRAY_BUFFER, VBO);
  glBufferData(GL_ARRAY_BUFFER, sizeof(float)*V.size(), V.data(), GL_STATIC_DRAW);
  glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, EBO);
  glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(GLuint)*F.size(), F.data(), GL_STATIC_DRAW);
  glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(GLfloat), (GLvoid*)0);
  glEnableVertexAttribArray(0);
  glBindBuffer(GL_ARRAY_BUFFER, 0);
  glBindVertexArray(0);

  // Main display routine
  glutDisplayFunc(
    []()
    {
      // clear screen and set viewport
      glClearColor(0.0,0.4,0.7,0.);
      glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
      glViewport(0,0,w,h);

      // Projection and modelview matrices
      Eigen::Matrix4f proj = Eigen::Matrix4f::Identity();
      float near = 0.01;
      float far = 100;
      float top = tan(35./360.*M_PI)*near;
      float right = top * (double)::w/(double)::h;
      igl::frustum(-right,right,-top,top,near,far,proj);
      Eigen::Affine3f model = Eigen::Affine3f::Identity();
      model.translate(Eigen::Vector3f(0,0,-1.5));
      // spin around
      static size_t count = 0;
      model.rotate(Eigen::AngleAxisf(0.01*count++,Eigen::Vector3f(0,1,0)));

      // select program and attach uniforms
      glUseProgram(prog_id);
      GLint proj_loc = glGetUniformLocation(prog_id,"proj");
      glUniformMatrix4fv(proj_loc,1,GL_FALSE,proj.data());
      GLint model_loc = glGetUniformLocation(prog_id,"model");
      glUniformMatrix4fv(model_loc,1,GL_FALSE,model.matrix().data());

      // Draw mesh as wireframe
      glPolygonMode(GL_FRONT_AND_BACK, GL_LINE);
      glBindVertexArray(VAO);
      glDrawElements(GL_TRIANGLES, F.size(), GL_UNSIGNED_INT, 0);
      glBindVertexArray(0);

      glutSwapBuffers();
      glutPostRedisplay();
    }
    );
  glutReshapeFunc([](int w,int h){::w=w,::h=h;});
  std::cout<<"OpenGL version: "<<glGetString(GL_VERSION)<<std::endl;
  glutMainLoop();
}

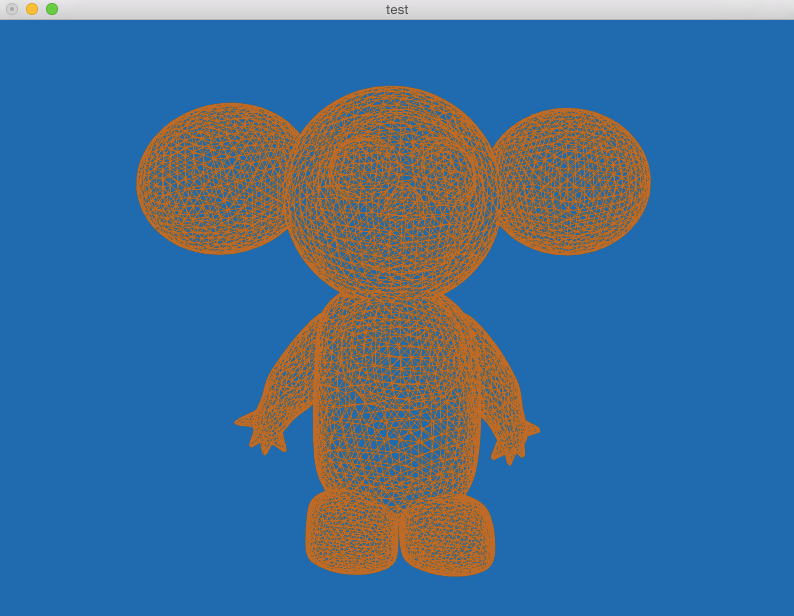

This produces:

and on my mac outputs:

OpenGL version: 4.1 INTEL-10.6.20
