# Barycentric coordinates within sub-triangle

## Alec Jacobson

## December 26, 2020

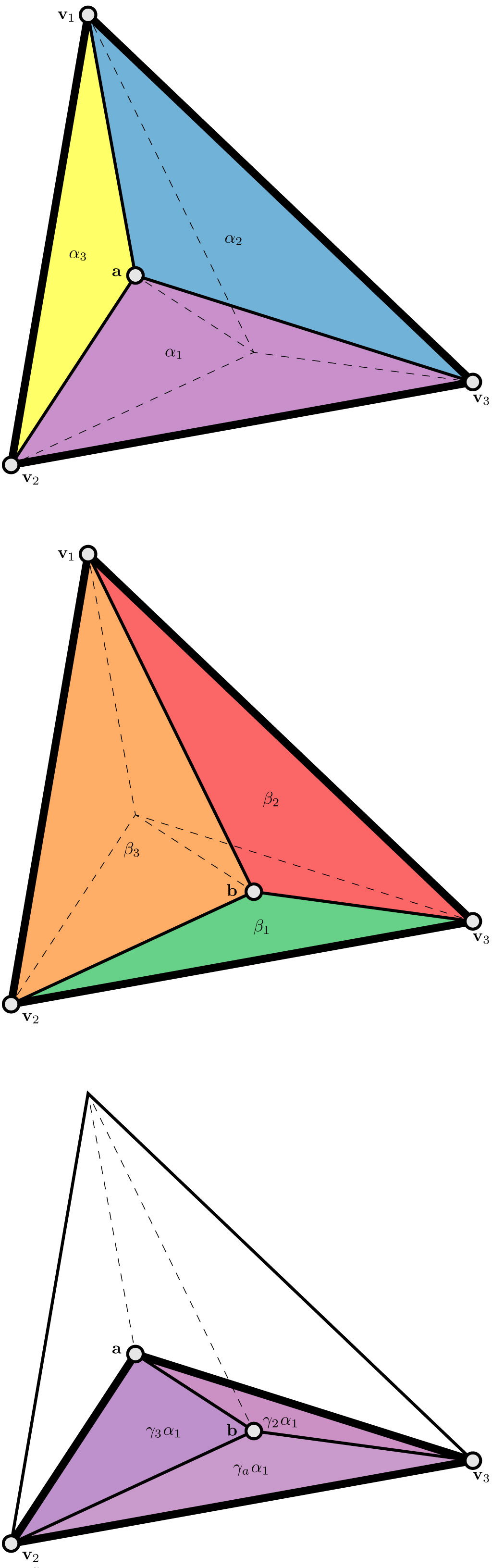

Given a non-degenerate triangle with corner positions at `V = (v₁,v₂,v₃)`

and two interior points `a`

,`b`

with barycentric coordinates `α`

and `β`

. We would like to identify which subtriangle `(a,vi,vi+1)`

within `b`

lies, and what are its "new" barycentric coordinates `γ`

in this subtriangle.

Assume that `b`

lies within subtriangle `(a,v₂,v₃)`

, then

```
V β = [a v₂ v₃] γ
V β = V [α δ₂ δ₃] γ
β = [α δ₂ δ₃] γ
[α δ₂ δ₃]⁻¹ β = γ
```

This system is easily inverted:

```
[α₁⁻¹[1 -α₂ -α₃]ᵀ δ₂ δ₃] β = γ
[β₁/α₁ β₂-β₁α₂/α₁ β₃-β₁α₃/α₁] = γ
```

If `γ≥0`

, then our assumption was right. Otherwise, try again with

```
[δ₁ a δ₃]⁻¹ β = γ
```

and perhaps again with

```
[δ₁ δ₂ a]⁻¹ β = γ.
```

As a side-note, working with barycentric coordinates I consistently find that it's useful to *momentarily* assume that you have an embedding for the triangle (in this case the non-singular matrix `V`

).
